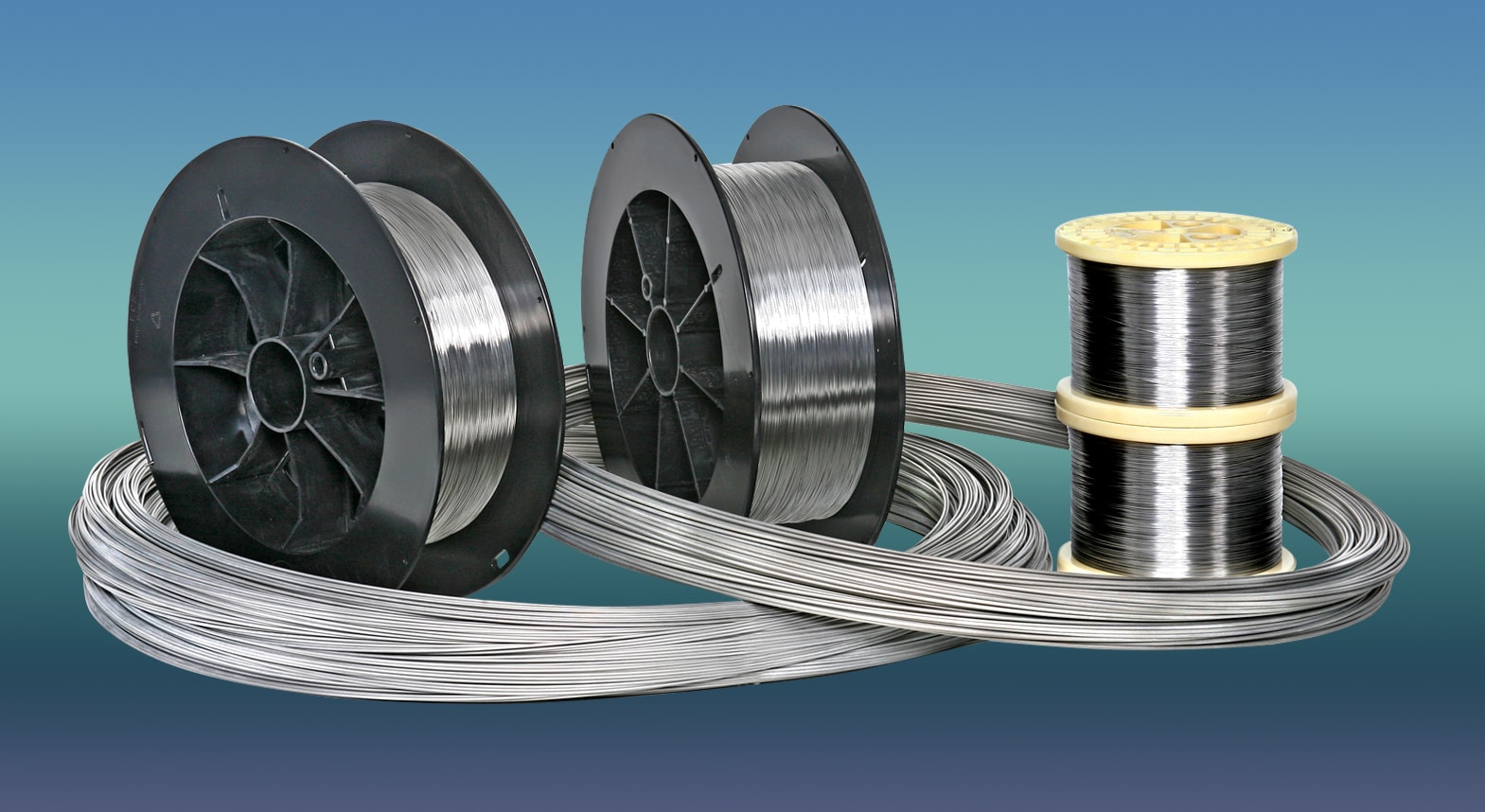

Wire – Inconel Alloy 601

Wire – Inconel Alloy 601

Inconel® Alloy 601

UNS N06601
W.Nr 2.4851

Applications

Furnace fixtures and mesh belts.

Description

Inconel® 601 is a Nickel-Chromium-Iron corrosion and heat resistant alloy. The aluminum content gives this alloy excellent resistance to high temperature oxidation. Inconel® 601 is not age-hardenable and is only strengthened by cold working.
Inconel® 601 can operate from cryogenic temperatures up to 645°F (340°C).

Industries Supplied

Thermal Processing, Chemical Processing, Power Generation and Aerospace.

Nominal Composition

Ni: 58.0 – 63.0
Cr: 21.0 – 25.0
Al: 1.0 – 1.7
Cu: 1.0 max
Mn: 1.0 max
Fe: balance
Si: 0.5 max
C: 0.1 max
S: 0.015 max

Physical Properties

Density: 0.293 lb/in3, (8.11 g/cm3)

Modulus of Elasticity (E):
At 70°F (20°C): 30.0 x 103 ksi (207 GPa)

Modulus of Rigidity (G):
At 70°F (20°C): 11.8 x 103 ksi (81.2 GPa)

Coefficient of Expansion:
8.1 µin/in.-°F (70°F to 600°F)
14.6 µm/m-°C (20°C to 300°C)

Electrical Resistivity: 46.5 µΩ.in, (118 µΩ.cm)

Thermal Conductivity: 78 Btu-in/ft2hr-°F, (11.2 W/m-K)

Applicable Specifications

Wire & Bar: ASTM B166, AWS A5.14.

Typical Mechanical Properties – Spring Applications

  • Annealed
    • Heat Treatment: 2100°F (1150°C)
    • Tensile Strength: 90 – 115 ksi; (620-793 MPa)
    • Suggested Operating Conditions: -300°F to 645°F (-184°C to 340°C)
  • Spring Temper
    • Tensile Strength: 180 – 210 ksi; (1240 – 1448 MPa)
    • Suggested Operating Conditions: -300°F to 645°F (-184°C to 340°C​)

Inconel® is a registered trademark of the Special Metals Corporation group of companies.

For further information Contact:

Email: [email protected]
Phone: 1 847 695 1900
Elgiloy Specialty Metals – Wire Products
356 N.Cross Street
Sycamore, IL 60178 USA

Limitation of Liability and Disclaimer of Warranty:

  • The content in these data sheets is provided primarily by third-party melting mills and is provided for reference only.  It is not intended for engineering or design.
  • Applications may be discussed, however, Elgiloy Specialty Metals, a Division of Combined Metals of Chicago L.L.C., does not recommend or endorse any material for any particular end use or application.
  • The data included in this data sheet are typical values and may vary.
  • Elgiloy Specialty Metals, a Division of Combined Metals of Chicago L.L.C., makes no representations or warranties, express or implied, as to the accuracy, completeness, condition, suitability, performance, fitness for a particular purpose, or merchantability of any information contained in any data sheet.

In no event will Elgiloy Specialty Metals, a Division of Combined Metals of Chicago L.L.C., be liable for any damages whatsoever arising from the use of the information included in the data sheets.
